The Chuan Floor Plans

16 floor plans for The Chuan in District 19 (Hougang / Punggol / Sengkang), grouped by bedroom count.

1-Bedroom Floor Plans

2 plans · 764–980 sq ft

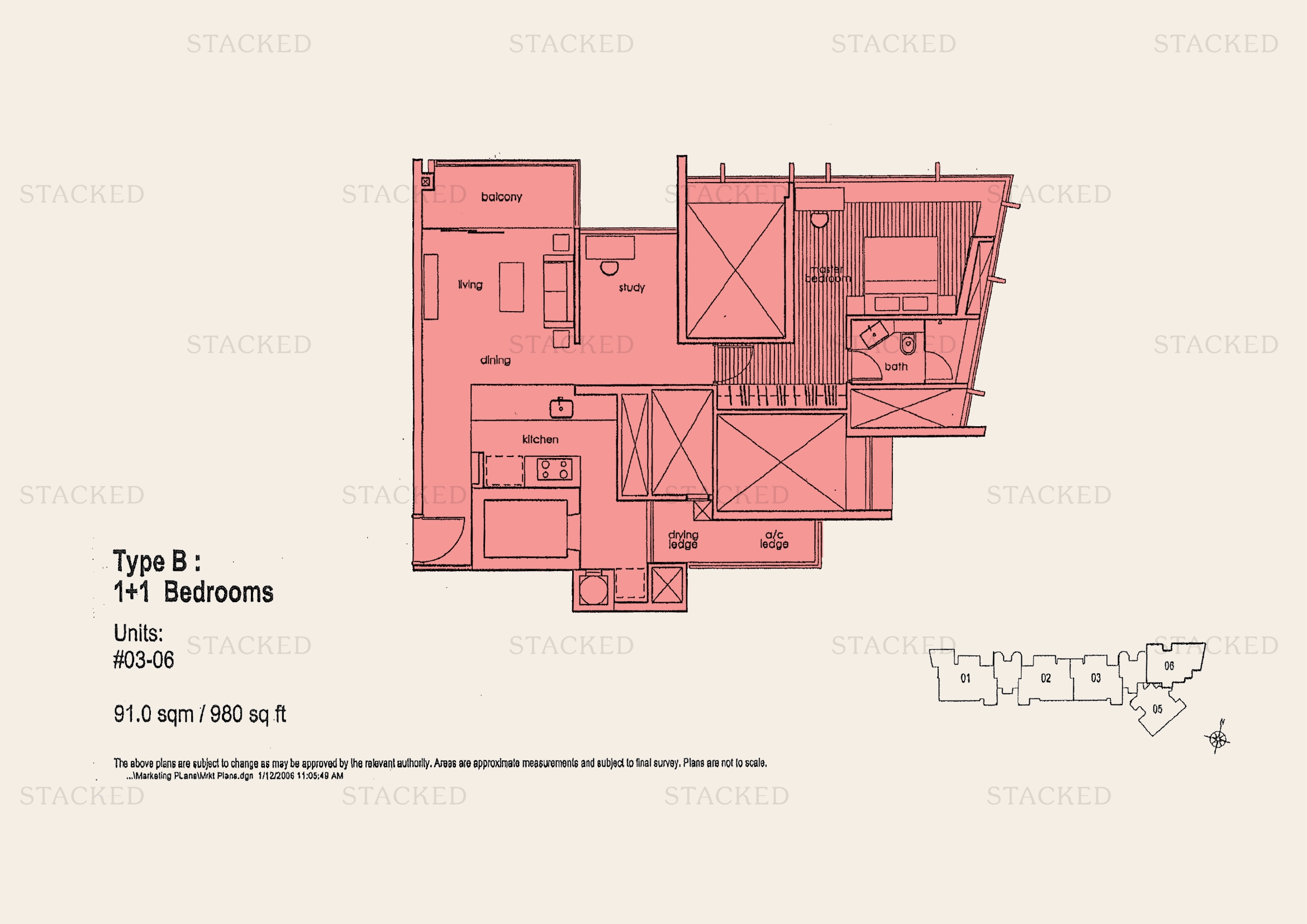

The Chuan Type B floor plan — Type B 980 sq ft · With study

The Chuan Type A floor plan — Type A 764 sq ft

2-Bedroom Floor Plans

1 plan · 936 sq ft

The Chuan Type C floor plan — Type C 936 sq ft

3-Bedroom Floor Plans

7 plans · 1,281–1,582 sq ft

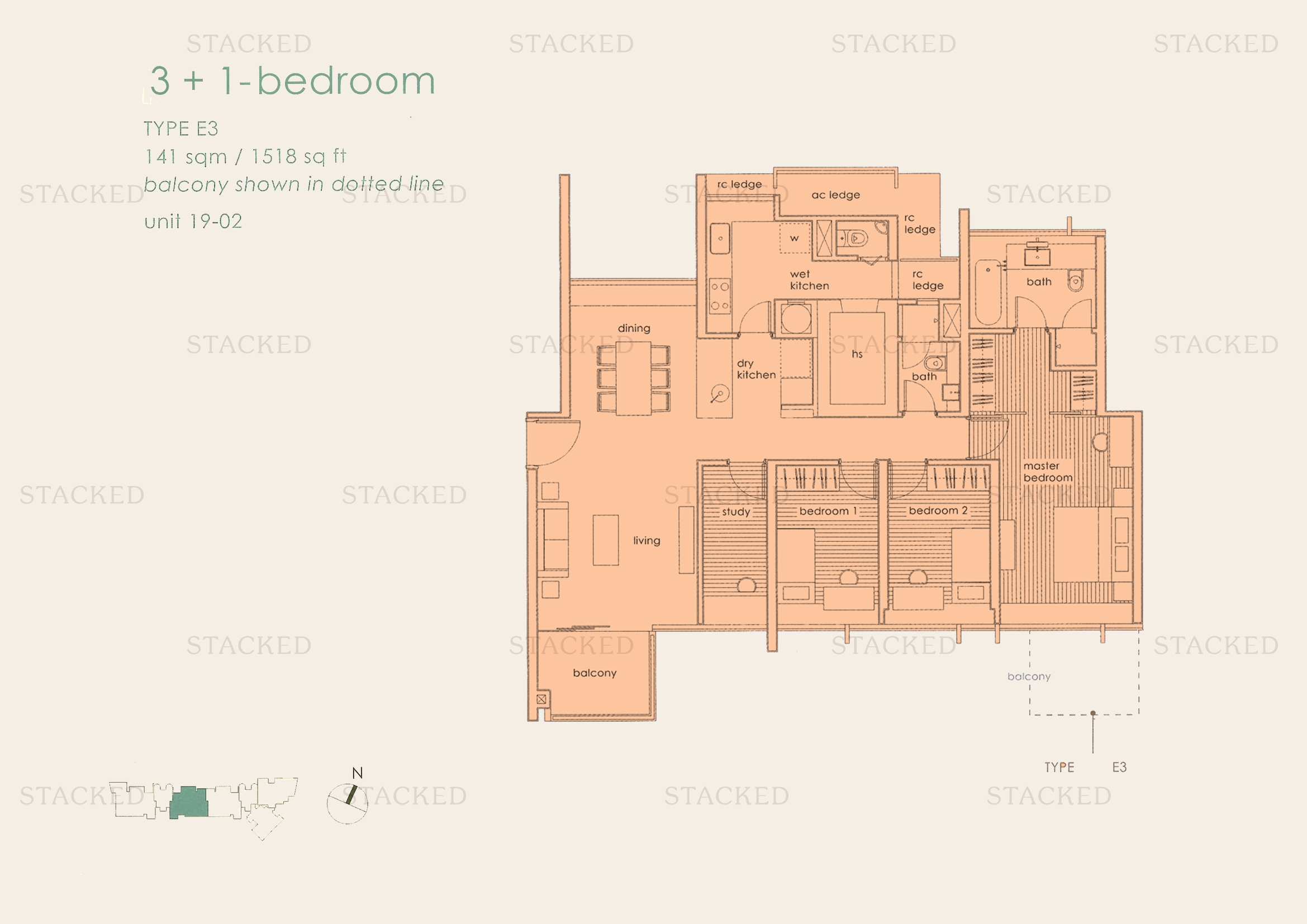

The Chuan Type E3 floor plan — Type E3 1,518 sq ft · With study

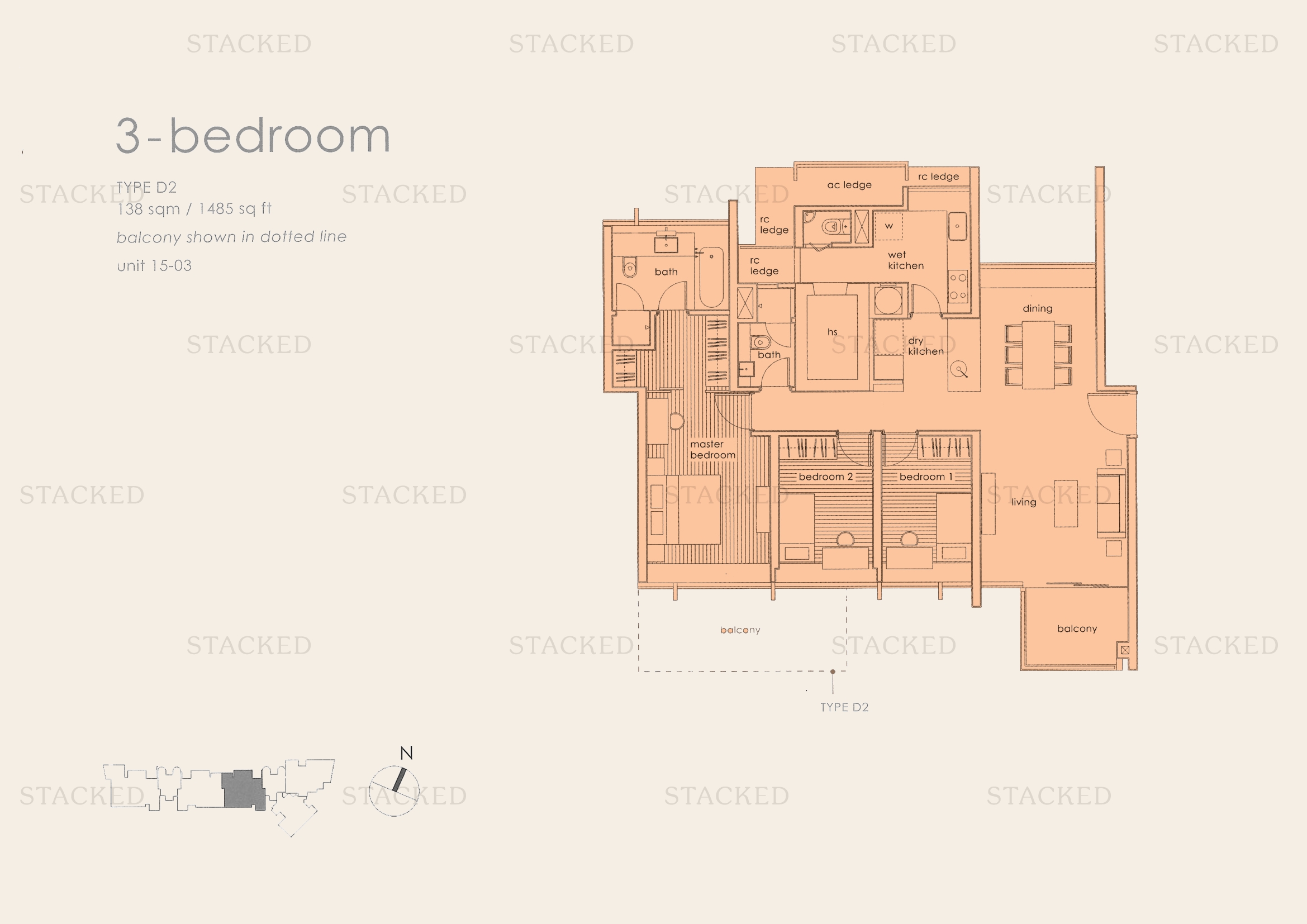

The Chuan Type D2 floor plan — Type D2 1,485 sq ft

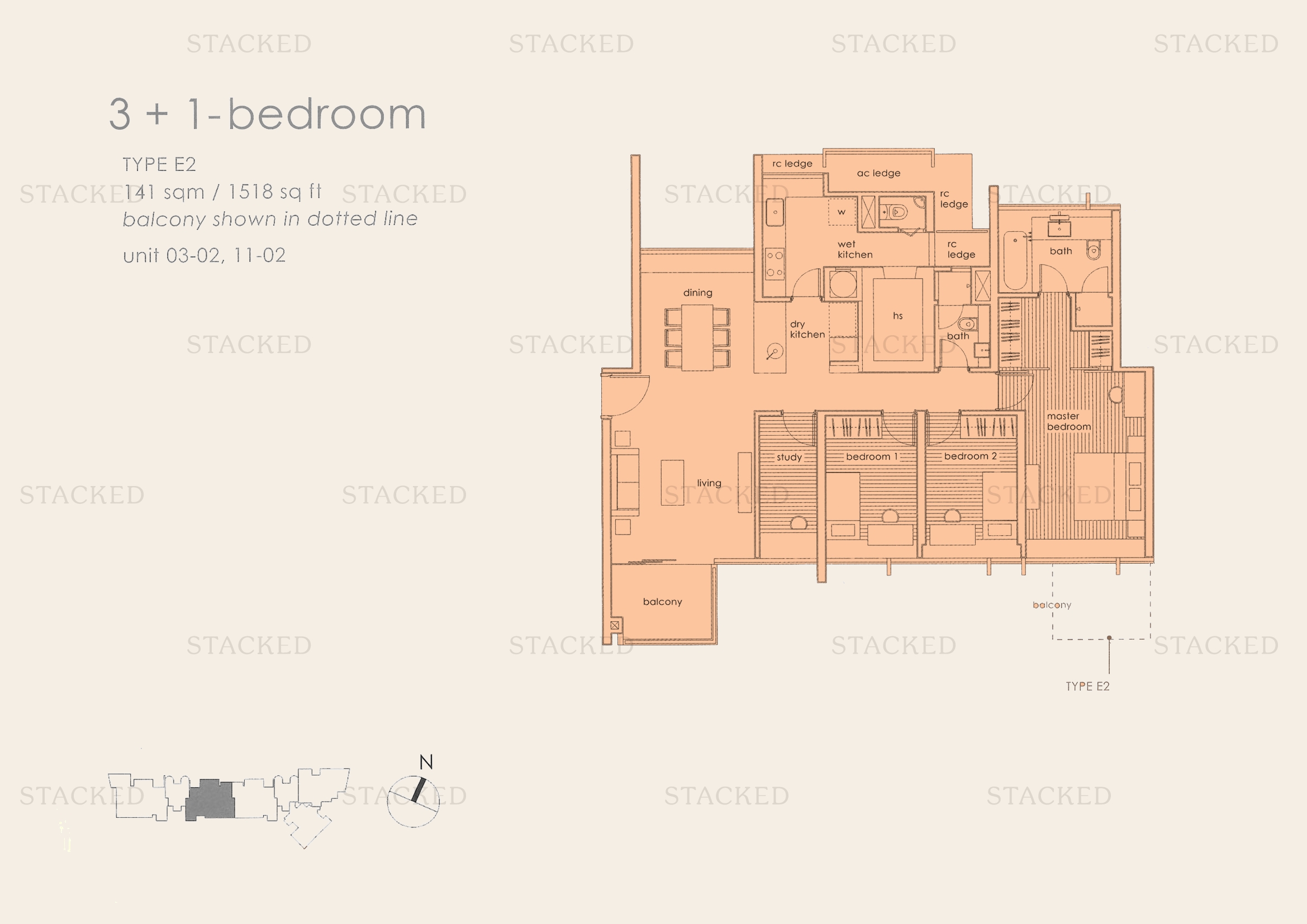

The Chuan Type E2 floor plan — Type E2 1,518 sq ft · With study

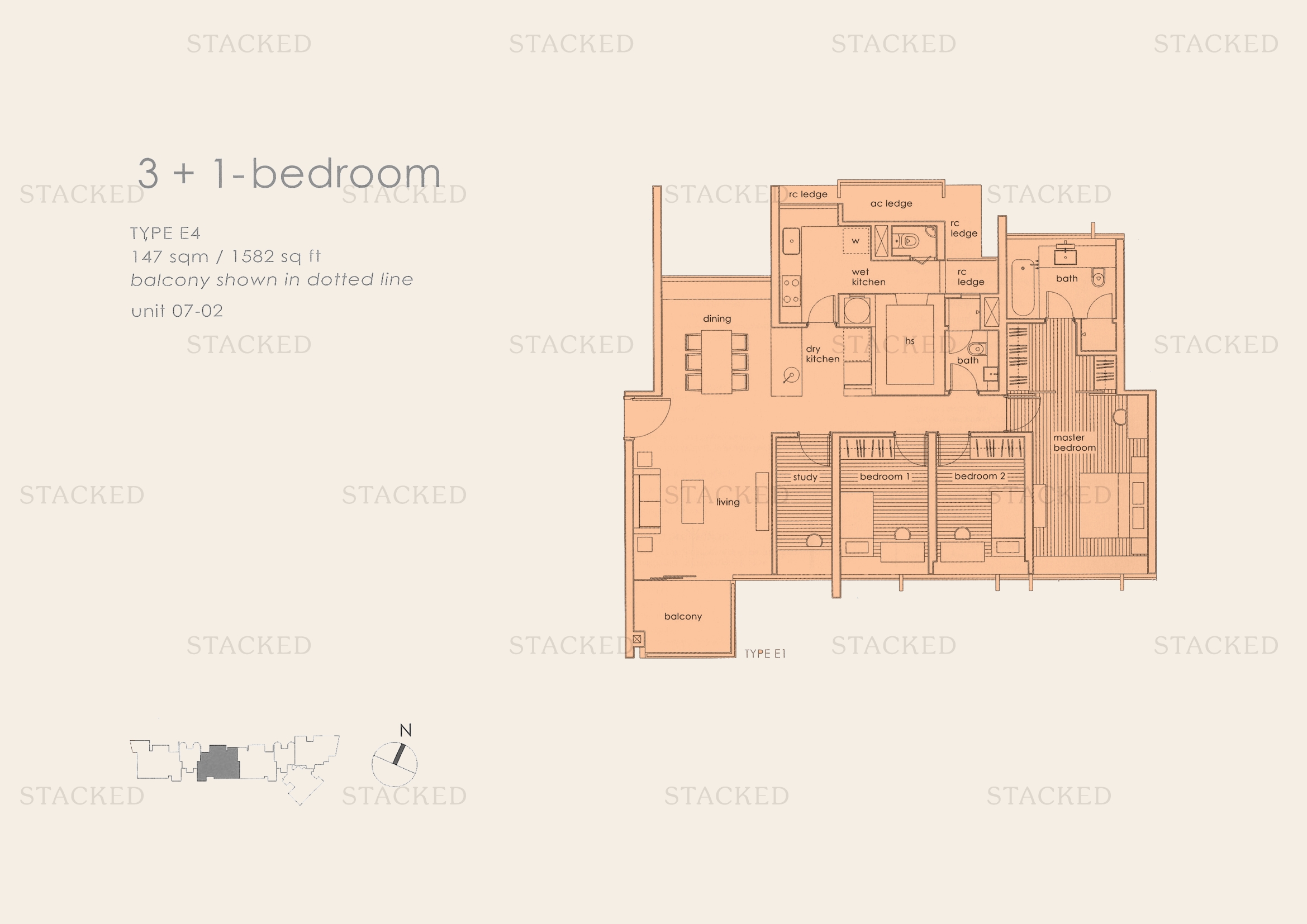

The Chuan Type E4 floor plan — Type E4 1,582 sq ft · With study

The Chuan Type D1 floor plan — Type D1 1,367 sq ft

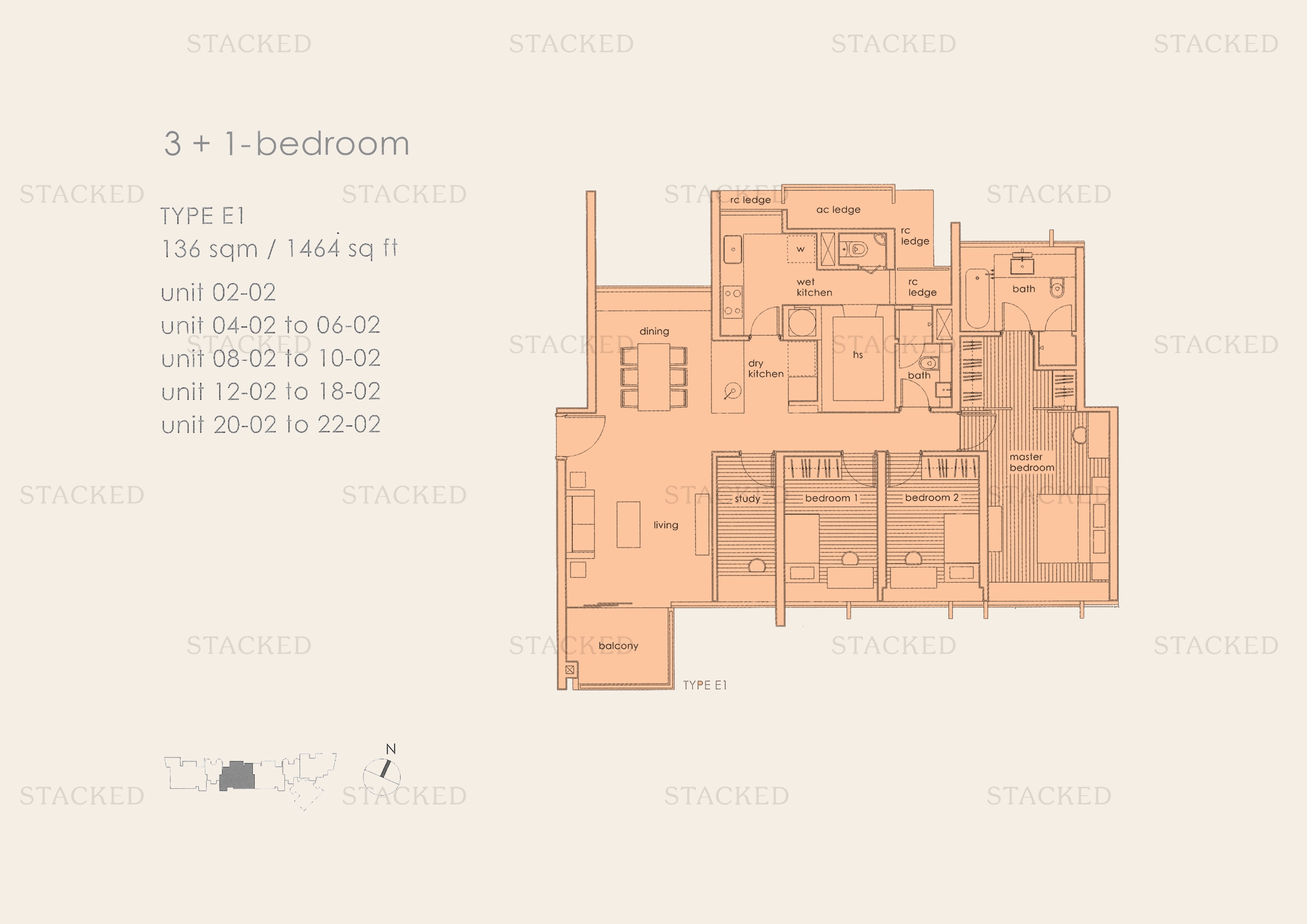

The Chuan Type E1 floor plan — Type E1 1,464 sq ft · With study

The Chuan Type D3 floor plan — Type D3 1,281 sq ft

4-Bedroom Floor Plans

3 plans · 1,658–3,025 sq ft

The Chuan Type G1 floor plan — Type G1 3,025 sq ft · With study

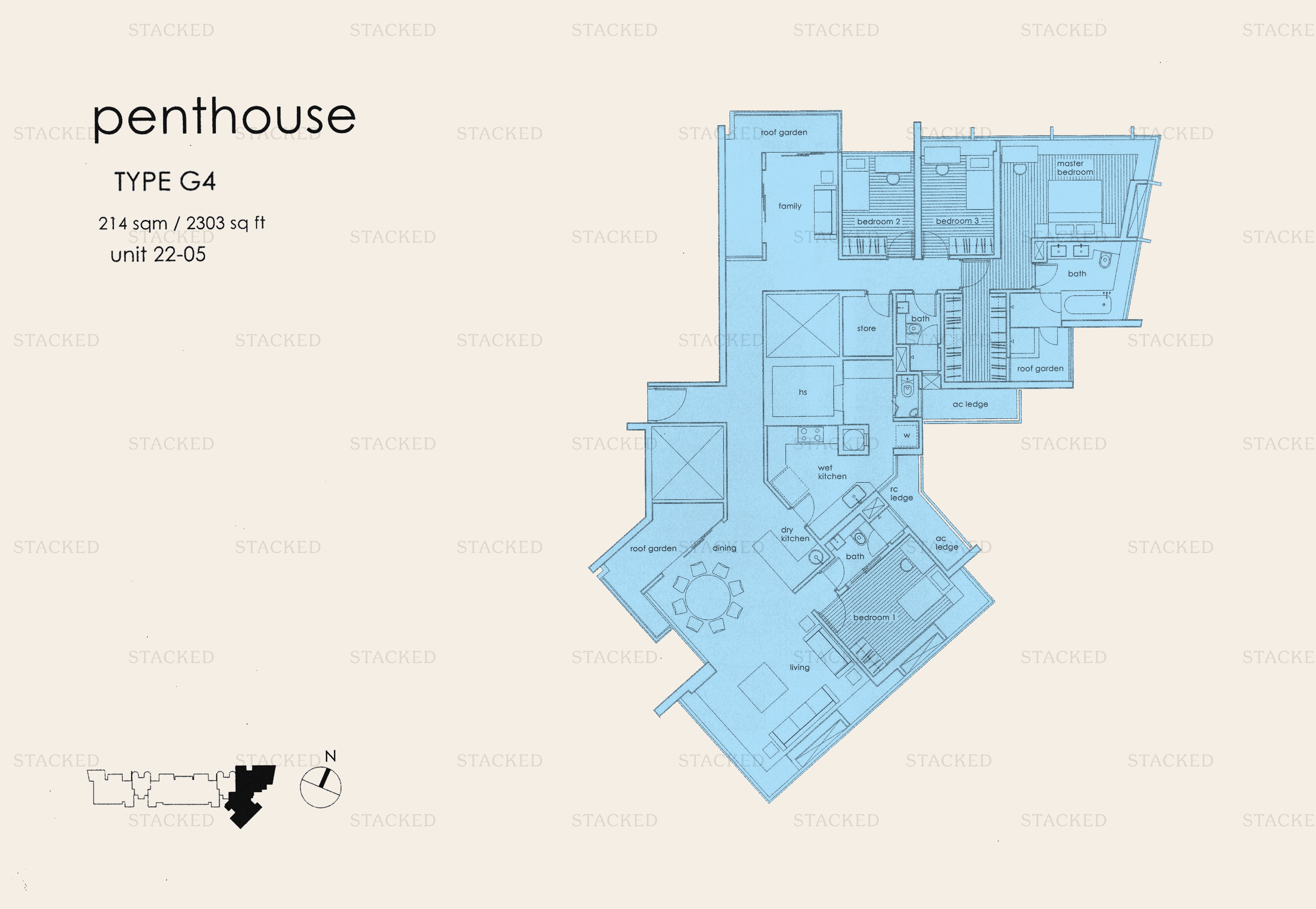

The Chuan Type G4 floor plan — Type G4 2,303 sq ft

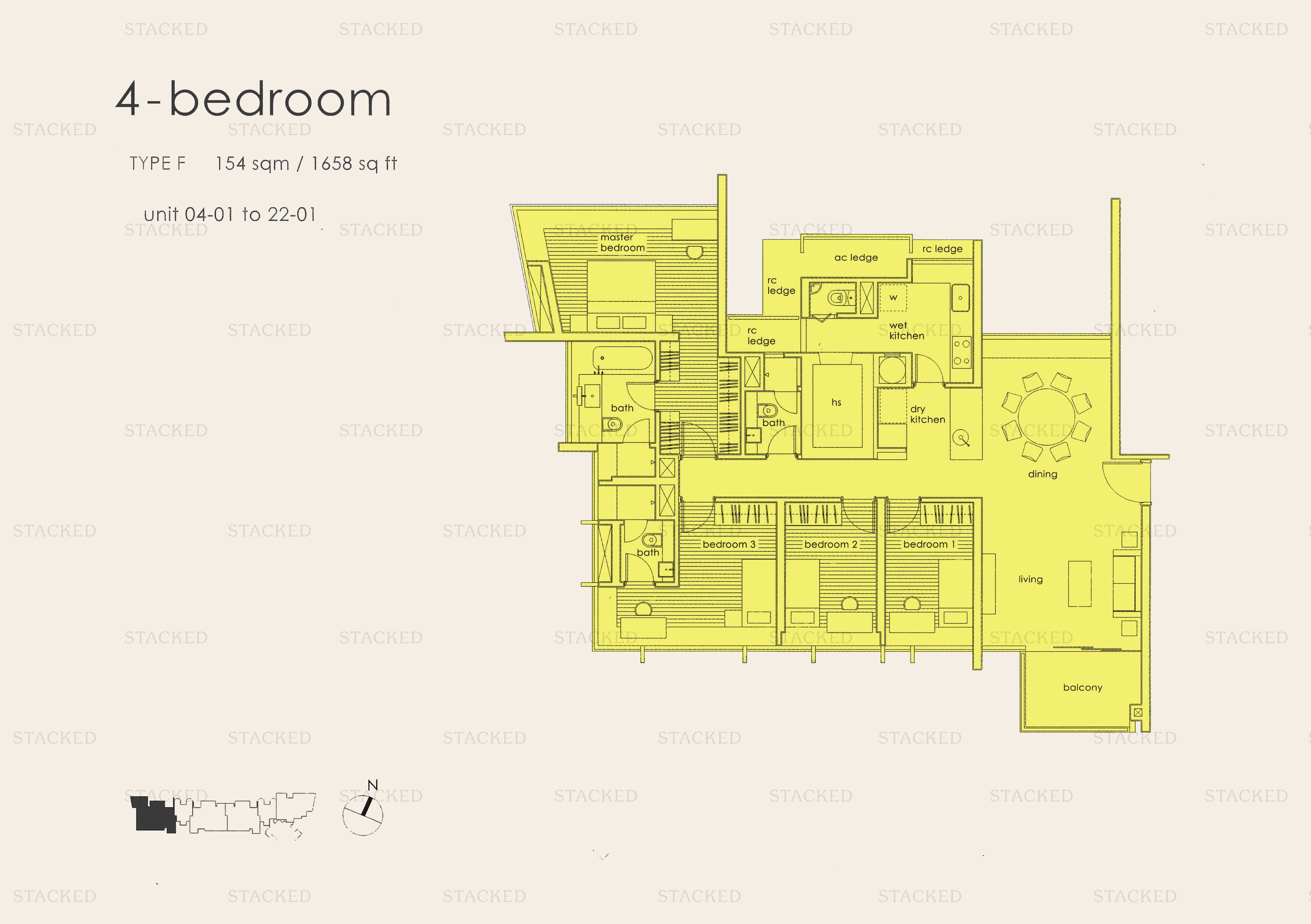

The Chuan Type F floor plan — Type F 1,658 sq ft

Penthouse Floor Plans

2 plans · 2,282–2,508 sq ft

The Chuan Type G5 Penthouse floor plan — Type G5 Penthouse 2,282 sq ft

The Chuan Penthouse Type G2 floor plan — Penthouse Type G2 2,508 sq ft

More Floor Plans

1 plan

These drawings haven’t been sorted by bedroom count yet, as some don’t label their rooms.

The Chuan Floor plan floor plan — Floor plan

Back to The Chuan →

Plans are as issued by the developer and do not form part of any offer or contract. If a bedroom count looks wrong, write to contact@stackedhomes.com.
